如何通过RA8889 / RA8876来显示文字？
UI界面需求最大的两个功能，第一个是显示图形，第二个是显示文字。文字部分有ASCII和中文，或者是多国语言，下面我们就专门针对RA8889如何显示文字展开介绍。
本章要介绍如何自建中文字库，以及单片机如何控制RA8889进行调用并显示。
本篇要展现的内容比较丰富，篇幅较长，需要多些耐心阅读。
三种文字显示方法的优缺比较：
通过上图比较，自建字库除了显示速度会慢一些，优势还是很大，设计灵活度也很高，同时还可以节省专用字库芯片的成本，具有一定的经效益，值得多加参考！
下面开始介绍单片机如何控制RA8889来驱动彩屏显示文字，这里主要是针对显示中文字体进行展开说明，若还有其他国家的字体也可以借鉴该方法进行设计，有兴趣的C友们可留言进行探讨。
一、需求的中文字数不多，采用以下方法
自建点阵字码表；
单片机获取字码数据，按点写入显存，同时指定前景、背景及透明色。

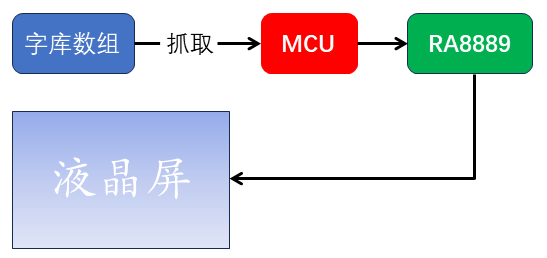

框架图：
调用函数：
**
void User_Font_Demo(void)
{
Show_User_Font(25, 32, 350, 180, 0, color65k_red, color65k_green, "菱致电子瑞佑科技");
Show_User_Font(25, 32, 260, 260, 1, color65k_black, color65k_red, "单片机驱动彩色液晶屏极简方案");
delay_seconds(3);
}子函数：
**
void Show_User_Font(
unsigned int font_lib_size // 自建字库数组的文字个数
,
unsigned int font_size // 字模大小，比如32*32点阵写32
,
unsigned short x // 显示窗口的x轴坐标
,
unsigned short y // 显示窗口的y轴坐标
,
int Chroma_key // 是否透明：0-不透明 1-透明色
,
unsigned long Foreground_color // 前景色
,
unsigned long Background_color // 背景色
,
const unsigned char *str // 字符串
)
{
unsigned int i, j = 0;
unsigned int k, len; // len；字符串的长度
unsigned char hanziCode[128];
unsigned char strfont_0, strfont_1, Index_0, Index_1;
Goto_Pixel_XY(x, y);
strcpy((char *)hanziCode, str);
len = strlen(hanziCode) / 2; // 一个中文汉字占两个字节
for (k = 0; k < len; k++) {
strfont_0 = *(hanziCode + j); // 字符值
j++;
strfont_1 = *(hanziCode + j);
j++;
for (i = 0; i < font_lib_size; i++) {
Index_0 = code_GB_32[i].Index[0]; // 取出字库数组中汉字内码索引值
Index_1 = code_GB_32[i].Index[1];
if (strfont_0 == Index_0 && strfont_1 == Index_1) // 比较字符值与汉字内码索引值
{
if (Chroma_key == 1)
BTE_MCU_Write_ColorExpansion_Chroma_key_MCU_8bit(0, canvas_image_width, x + font_size * k, y, font_size, font_size, Foreground_color, code_GB_32[i].Msk); // 透明色
if (Chroma_key == 0)
BTE_MCU_Write_ColorExpansion_MCU_8bit(0, canvas_image_width, x + font_size * k, y, font_size, font_size, Foreground_color, Background_color, code_GB_32[i].Msk); // 非透明色
break;
}
}
}
}上例中BTE_MCU_Write_ColorExpansion_Chroma_key_MCU_8bit和BTE_MCU_Write_ColorExpansion_MCU_8bit为瑞佑官方API接口程序，本文暂不缀述。实例显示效果如下图：

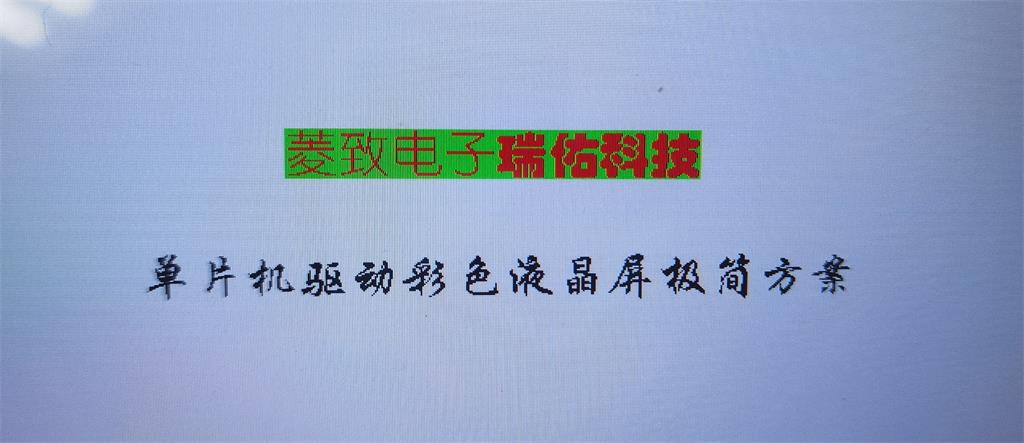

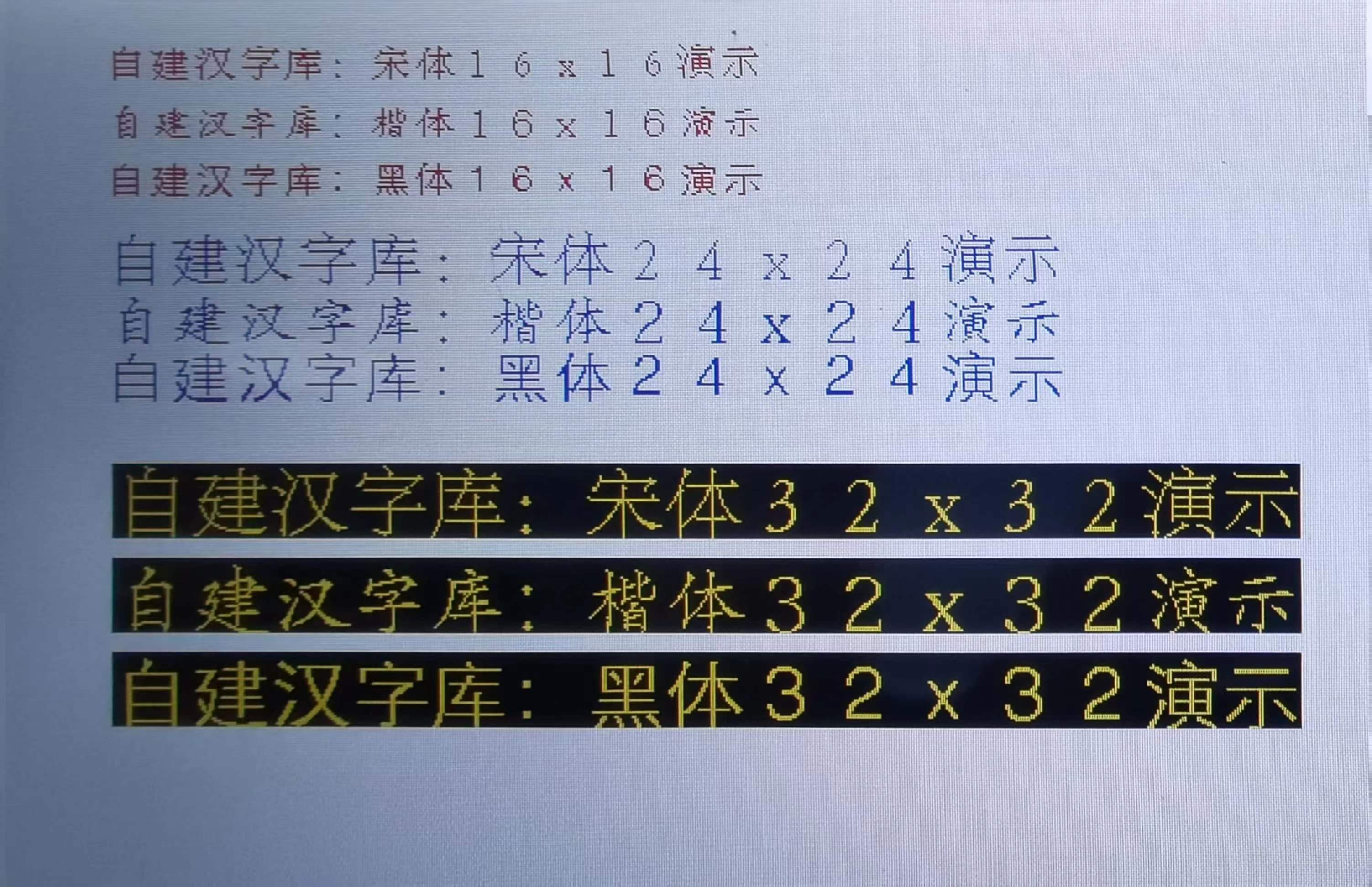

自建汉字每个字皆可单独取模，因此可展现不同字体。
附上自建汉字字模数组，汉字取模软件为横向8点左高位，从左到右，从上到下排列。取模的软件可以和我们联络获取。
**
// ------------------ 汉字字模的数据结构定义 ------------------------ //
typedef struct typFNT_GB32 // 汉字字模数据结构
{
signed char Index[2]; // 汉字内码索引
char Msk[128]; // 点阵码数据：32*32/8=128
};
/////////////////////////////////////////////////////////////////////////
// 汉字字模表 //
// Font:32,横向取模左高位,数据排列:从左到右从上到下 //
////////////////////////////////////////////////////////////////////////
struct typFNT_GB32 code_GB_32[] = // 菱致电子瑞佑科技单片机驱动彩色液晶屏极简方案
{
"菱", 0x00,0x00,0x00,0x00,0x00,0x60,0x06,0x00,
0x00,0x60,0x06,0x00,0x00,0x60,0x06,0x00,
0x3F,0xFF,0xFF,0xFC,0x00,0x60,0x06,0x00,
0x00,0x61,0x06,0x00,0x00,0x41,0x84,0x00,
0x0F,0xFF,0xFF,0xF0,0x0F,0xFF,0xFF,0xF0,
0x00,0x01,0x80,0x00,0x00,0x01,0x80,0x00,
0x3F,0xFF,0xFF,0xFC,0x3F,0xFF,0xFF,0xFC,
0x00,0x00,0x00,0x00,0x00,0x60,0x0E,0x00,
0x00,0xE0,0x07,0x00,0x03,0x88,0x01,0xC0,
0x07,0x18,0x00,0x70,0x3C,0x30,0x00,0x38,
0x30,0x7F,0xFF,0x0C,0x01,0xE0,0x03,0x00,
0x03,0xB0,0x07,0x00,0x0E,0x18,0x0C,0x00,
0x1C,0x0E,0x38,0x00,0x00,0x03,0xE0,0x00,
0x00,0x03,0xC0,0x00,0x00,0x1F,0x78,0x00,
0x01,0xF8,0x0F,0xE0,0x3F,0x80,0x00,0xFE,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"致", 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x10,0x00,0x3F,0xFF,0x10,0x00,
0x3F,0xFF,0x10,0x00,0x03,0x00,0x30,0x00,
0x02,0x08,0x3F,0xFC,0x06,0x0C,0x30,0x20,
0x04,0x0C,0x30,0x20,0x0C,0x04,0x20,0x20,
0x08,0x06,0x20,0x20,0x18,0x1E,0x70,0x20,
0x3F,0xFF,0x70,0x60,0x10,0xC3,0x50,0x60,
0x00,0xC1,0x50,0x60,0x00,0xC0,0xD8,0x40,
0x00,0xC0,0x18,0x40,0x00,0xC0,0x08,0xC0,
0x00,0xC0,0x0C,0xC0,0x3F,0xFE,0x0D,0x80,
0x00,0xC0,0x07,0x80,0x00,0xC0,0x07,0x00,
0x00,0xC0,0x03,0x00,0x00,0xC0,0x07,0x80,
0x00,0xC0,0x0D,0x80,0x00,0xC7,0x18,0xC0,
0x00,0xFE,0x30,0x60,0x03,0xF0,0x60,0x30,
0x3F,0x01,0xC0,0x18,0x30,0x01,0x80,0x0C,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"电", 0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,
0x00,0x03,0x00,0x00,0x00,0x03,0x00,0x00,
0x00,0x03,0x00,0x00,0x0F,0xFF,0xFF,0xE0,
0x1F,0xFF,0xFF,0xE0,0x10,0x03,0x00,0x20,
0x10,0x03,0x00,0x20,0x10,0x03,0x00,0x20,
0x10,0x03,0x00,0x20,0x10,0x03,0x00,0x20,
0x1F,0xFF,0xFF,0xE0,0x1F,0xFF,0xFF,0xE0,
0x10,0x03,0x00,0x20,0x10,0x03,0x00,0x20,
0x10,0x03,0x00,0x20,0x10,0x03,0x00,0x20,
0x10,0x03,0x00,0x20,0x10,0x03,0x00,0x20,
0x10,0x03,0x00,0x20,0x1F,0xFF,0xFF,0xE0,
0x07,0xFF,0xFF,0x80,0x00,0x03,0x00,0x06,
0x00,0x03,0x00,0x06,0x00,0x03,0x00,0x06,
0x00,0x03,0x00,0x04,0x00,0x03,0x00,0x0C,
0x00,0x01,0xFF,0xFC,0x00,0x00,0xFF,0xF0,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"子", 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x07,0xFF,0xFF,0x80,0x07,0xFF,0xFF,0x80,
0x00,0x00,0x03,0x80,0x00,0x00,0x06,0x00,
0x00,0x00,0x1C,0x00,0x00,0x00,0x38,0x00,
0x00,0x00,0xE0,0x00,0x00,0x03,0x80,0x00,
0x00,0x07,0x00,0x00,0x00,0x03,0x00,0x00,
0x00,0x01,0xC0,0x00,0x00,0x00,0xE0,0x00,
0x3F,0xFF,0xFF,0xFE,0x3F,0xFF,0xFF,0xFE,
0x00,0x00,0x30,0x00,0x00,0x00,0x18,0x00,
0x00,0x00,0x18,0x00,0x00,0x00,0x18,0x00,
0x00,0x00,0x18,0x00,0x00,0x00,0x08,0x00,
0x00,0x00,0x08,0x00,0x00,0x00,0x08,0x00,
0x00,0x00,0x18,0x00,0x00,0x00,0x18,0x00,
0x01,0x00,0x18,0x00,0x01,0xC0,0x70,0x00,
0x00,0xFF,0xE0,0x00,0x00,0x1F,0x80,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"瑞", 0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x00,
0x00,0x00,0x3F,0x00,0x00,0x07,0xBF,0x7C,
0x3F,0xF7,0xBF,0x7C,0x7F,0xF7,0xBF,0x7C,
0x7F,0xFF,0xBF,0x7C,0x7F,0xF7,0xFF,0xFC,
0x3F,0xF7,0xFF,0xFC,0x0F,0xE7,0xFF,0xFC,
0x0F,0xCF,0xFF,0xF8,0x0F,0xC0,0x00,0x00,
0x0F,0xDF,0xFF,0xFC,0x3F,0xFF,0xFF,0xFE,
0x3F,0xFF,0xFF,0xFE,0x3F,0xFF,0xFF,0xFE,
0x3F,0xDF,0xFF,0xFC,0x3F,0xC0,0x7E,0x00,
0x1F,0xCF,0xFF,0xF8,0x0F,0xDF,0xFF,0xFC,
0x0F,0xDF,0xFF,0xFC,0x0F,0xEF,0xFF,0xFC,
0x3F,0xF7,0x77,0x7C,0x7F,0xF7,0x77,0x7C,
0x7F,0xF7,0x77,0x7C,0x7F,0xF7,0x77,0x7C,
0x7F,0xFF,0x76,0xFC,0x10,0x1F,0x75,0xFC,
0x00,0x1F,0x75,0xFC,0x00,0x1F,0x75,0xFC,
0x00,0x1F,0x75,0xFC,0x00,0x00,0x00,0x00,
"佑", 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x01,0xF8,0x7F,0x00,0x01,0xF8,0x7F,0x00,
0x03,0xF8,0x7F,0x00,0x03,0xE0,0x7F,0x00,
0x03,0xCF,0xFF,0xFE,0x07,0xDF,0xFF,0xFF,
0x07,0xDF,0xFF,0xFF,0x07,0xDF,0xFF,0xFF,
0x0F,0xDF,0xFF,0xFF,0x1F,0xCF,0xFF,0xFE,
0x1F,0xE3,0xFC,0x00,0x3F,0xE3,0xF8,0x00,
0x3F,0xE7,0xC0,0x00,0x3F,0xEF,0x9F,0xF8,
0x1F,0xCF,0xBF,0xFE,0x0F,0x9F,0xBF,0xFE,
0x07,0xBF,0xBF,0xFE,0x07,0xBF,0xBF,0xFE,
0x07,0xBF,0xBF,0xFE,0x07,0x9F,0x38,0x7E,
0x07,0xCE,0x78,0x7E,0x07,0xE0,0xF8,0x7E,
0x07,0xE1,0xF8,0x7E,0x07,0xE1,0xFF,0xFE,
0x07,0xE1,0xFF,0xFE,0x07,0xE1,0xFF,0xFE,
0x07,0xE1,0xFF,0xFE,0x07,0xE1,0xFF,0xFE,
0x07,0xE0,0xFF,0xFC,0x00,0x00,0x00,0x00,
"科", 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x1F,0xFE,0x01,0xF0,0x3F,0xFE,0x63,0xF8,
0x3F,0xFC,0xF9,0xF8,0x3F,0xFD,0xFC,0xF8,
0x3F,0xFD,0xFE,0x78,0x1F,0xF9,0xFF,0x78,
0x07,0xF1,0xFF,0x78,0x3F,0xFE,0x3E,0x78,
0x7F,0xFE,0x0C,0xF8,0x7F,0xFD,0xF1,0xF8,
0x7F,0xFD,0xF9,0xF8,0x7F,0xFB,0xFE,0xF8,
0x3F,0x81,0xFE,0x78,0x07,0x31,0xFE,0x78,
0x0E,0xF8,0x7E,0xF8,0x0E,0xFC,0x1C,0xF8,
0x1E,0xFE,0x01,0xFC,0x3E,0x7E,0x07,0xFE,
0x7F,0x7E,0xFF,0xFE,0x7F,0xBC,0xFF,0xFE,
0x7F,0x89,0xFF,0xFE,0x7F,0xE7,0xFF,0xFE,
0x3F,0xF7,0xFF,0xF8,0x07,0xF3,0x83,0xF8,
0x07,0xF0,0x03,0xF8,0x07,0xF0,0x03,0xF8,
0x07,0xF0,0x03,0xF8,0x07,0xF0,0x03,0xF8,
0x03,0xE0,0x01,0xF8,0x00,0x00,0x00,0x00,
"技", 0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x00,
0x07,0xC0,0x3F,0x00,0x07,0xE0,0x3F,0x00,
0x07,0xE0,0x3F,0x00,0x07,0xE0,0x7F,0x80,
0x0F,0xE7,0xFF,0xFC,0x3F,0xEF,0xFF,0xFE,
0x7F,0xEF,0xFF,0xFE,0x7F,0xEF,0xFF,0xFE,
0x7F,0xEF,0xFF,0xFC,0x7F,0xF3,0xFF,0xF8,
0x1F,0xF0,0x3F,0x00,0x07,0xE1,0xFF,0xF0,
0x07,0xE7,0xFF,0xF8,0x07,0xF7,0xFF,0xFC,
0x3F,0xF7,0xFF,0xFC,0x7F,0xF7,0xFF,0xFC,
0x7F,0xF7,0xF1,0xF8,0x7F,0xF3,0xF1,0xF8,
0x7F,0xF3,0xFF,0xF8,0x3F,0xE1,0xFF,0xF0,
0x07,0xE1,0xFF,0xE0,0x07,0xE0,0xFF,0xC0,
0x07,0xE3,0xFF,0xF0,0x3F,0xCF,0xFF,0xFC,
0x3F,0xDF,0xFF,0xFE,0x7F,0xDF,0xFF,0xFE,
0x7F,0xDF,0xF3,0xFE,0x7F,0xDF,0xE0,0xFE,
0x3F,0xCF,0x80,0x7C,0x00,0x00,0x00,0x00,
"单", 0x00,0x00,0x00,0x00,0x00,0x01,0x38,0x00,
0x00,0x03,0x3C,0x00,0x00,0x3E,0x38,0x00,
0x00,0x3E,0x70,0x00,0x00,0x3C,0xE0,0x00,
0x00,0x1C,0xE0,0x00,0x00,0x1D,0xFC,0x00,
0x00,0x07,0xFE,0x00,0x00,0x0F,0xCF,0x00,
0x00,0xB3,0x8F,0x00,0x00,0xC3,0xCF,0x00,
0x00,0xEF,0xFE,0x00,0x00,0x7F,0xDC,0x00,
0x00,0x7F,0x9C,0x00,0x00,0x63,0xF8,0x00,
0x00,0x7F,0xF8,0x00,0x00,0x3F,0xF0,0x00,
0x00,0x1F,0x9F,0xC0,0x00,0x07,0xFF,0xE0,
0x00,0x3F,0x80,0x60,0x01,0xFB,0x80,0x00,
0x0F,0xC3,0x80,0x00,0x0F,0x03,0x80,0x00,
0x0C,0x03,0x80,0x00,0x00,0x03,0x80,0x00,
0x00,0x03,0x80,0x00,0x00,0x01,0x80,0x00,
0x00,0x01,0x80,0x00,0x00,0x01,0x80,0x00,
0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,
"片", 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xE0,0x00,0x00,0x00,0x78,0x00,
0x00,0x00,0x38,0x00,0x00,0x20,0x38,0x00,
0x00,0x38,0x30,0x00,0x00,0x1C,0x30,0x00,
0x00,0x1C,0x7C,0x00,0x00,0x1C,0x7E,0x00,
0x00,0x1B,0xFE,0x00,0x00,0x1F,0xF0,0x00,
0x00,0x19,0xC0,0x00,0x00,0x1A,0x00,0x00,
0x00,0x18,0x1F,0x80,0x00,0x19,0xFF,0xC0,
0x00,0x1F,0xD8,0x00,0x00,0x1E,0x18,0x00,
0x00,0x18,0x18,0x00,0x00,0x38,0x18,0x00,
0x00,0x30,0x18,0x00,0x00,0x30,0x18,0x00,
0x00,0x70,0x18,0x00,0x00,0xE0,0x18,0x00,
0x00,0xC0,0x18,0x00,0x00,0x40,0x18,0x00,
0x00,0x00,0x18,0x00,0x00,0x00,0x18,0x00,
0x00,0x00,0x10,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"机", 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x30,0x00,0x00,0x00,0x18,0x00,0x00,
0x00,0x18,0x00,0x00,0x00,0x18,0x06,0x00,
0x00,0x38,0x0F,0x00,0x00,0x3D,0x1F,0x80,
0x00,0x3E,0xBF,0x00,0x00,0xFC,0xC7,0x00,
0x01,0xF0,0xC6,0x00,0x2F,0xF0,0xC6,0x00,
0x1F,0xB4,0xC6,0x00,0x1F,0x34,0x8E,0x00,
0x06,0x78,0x8C,0x00,0x00,0x70,0x8C,0x40,
0x00,0xF1,0x8C,0x20,0x03,0xE1,0x8C,0x30,
0x07,0xE1,0x8C,0x10,0x07,0xE1,0x8C,0x18,
0x03,0x61,0x0E,0x1C,0x00,0x63,0x07,0xFE,
0x00,0x62,0x01,0xF8,0x00,0x60,0x00,0x00,
0x00,0x20,0x00,0x00,0x00,0x20,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"驱", 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x1E,0x03,0xC0,0x00,0xFF,0x1F,0xC0,
0x00,0x7F,0x0F,0x80,0x00,0x3F,0x10,0x00,
0x00,0x0E,0x20,0x00,0x00,0x8E,0x31,0xC0,
0x00,0x8E,0x30,0xE0,0x01,0x8C,0x30,0xE0,
0x01,0x9C,0x38,0xE0,0x01,0x9C,0x3E,0xC0,
0x01,0x9C,0x3F,0xC0,0x01,0xFF,0x23,0xE0,
0x03,0xFF,0xA3,0xE0,0x03,0xC3,0xA7,0xF0,
0x01,0x83,0xBF,0x70,0x00,0x33,0x6C,0x30,
0x03,0xE3,0x60,0x00,0x1F,0xC7,0x60,0x70,
0x1F,0x87,0x7F,0xF8,0x0E,0x8E,0x3F,0xFC,
0x08,0x7E,0x18,0x00,0x00,0x1C,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"动", 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x06,0x00,
0x00,0x7E,0x07,0x00,0x00,0x7F,0x07,0x00,
0x00,0x3F,0x0B,0x00,0x00,0x1E,0x0B,0x00,
0x00,0x38,0x07,0xC0,0x00,0x60,0x1F,0xE0,
0x01,0xC7,0x3F,0xE0,0x03,0x3F,0xFE,0x60,
0x04,0xFE,0x4C,0x60,0x0F,0xFC,0xDC,0x60,
0x0F,0xFC,0x9C,0x60,0x0F,0xFB,0x98,0xC0,
0x07,0x73,0x98,0xC0,0x00,0xE7,0xB8,0xC0,
0x01,0xDF,0xB8,0xC0,0x01,0xFD,0xE8,0xC0,
0x01,0xF0,0x6D,0x80,0x00,0xE0,0x47,0x80,
0x00,0x40,0xC7,0x80,0x00,0x00,0x87,0x00,
0x00,0x01,0x02,0x00,0x00,0x02,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"彩", 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,
0x00,0x07,0x80,0x00,0x00,0x0F,0x84,0x00,
0x00,0x3F,0x87,0x00,0x00,0x70,0x07,0xC0,
0x00,0xC7,0xC3,0xC0,0x00,0x7C,0xC3,0xC0,
0x01,0x99,0xC7,0x80,0x01,0x8B,0x8E,0x00,
0x01,0xCF,0x1E,0x00,0x00,0xDF,0x9F,0x80,
0x00,0x7F,0xA1,0x80,0x01,0xFC,0x21,0xC0,
0x07,0xEC,0x43,0x80,0x1F,0x8E,0x47,0x00,
0x7F,0x0C,0x8F,0x00,0x7C,0x1D,0x1F,0xC0,
0x00,0x3E,0x18,0xE0,0x00,0x7C,0x10,0xE0,
0x03,0xF8,0x00,0xE0,0x07,0xF8,0x01,0xC0,
0x07,0x98,0x03,0x80,0x00,0x08,0x07,0x00,
0x00,0x08,0x0E,0x00,0x00,0x08,0x18,0x00,
0x00,0x00,0x60,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"色", 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x03,0x00,0x00,0x00,0x03,0x80,0x00,
0x00,0x07,0x80,0x00,0x00,0x0F,0x80,0x00,
0x00,0x1F,0xE0,0x00,0x00,0x3F,0xF0,0x00,
0x00,0x38,0xF0,0x00,0x00,0x31,0xC0,0x00,
0x00,0x23,0x80,0x00,0x00,0x07,0xF8,0x00,
0x00,0x0F,0xFC,0x00,0x00,0x3F,0x1E,0x00,
0x00,0xFF,0x9C,0x00,0x00,0xF3,0x98,0x00,
0x00,0x63,0x38,0x00,0x00,0x67,0xF0,0x00,
0x00,0x7F,0xF8,0x00,0x00,0xFC,0x00,0x00,
0x00,0xF0,0x00,0x20,0x00,0xC0,0x00,0x20,
0x00,0xC0,0x00,0x20,0x00,0xC0,0x00,0x60,
0x00,0xC0,0x00,0x60,0x00,0x70,0x03,0xF0,
0x00,0x3F,0xFF,0xF0,0x00,0x0F,0xFF,0xC0,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"液", 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x01,0xC0,0x00,0x00,0x03,0xF0,0x00,
0x00,0x83,0xF0,0x00,0x00,0xC2,0xF0,0x00,
0x00,0xE3,0x90,0x00,0x00,0x76,0x38,0x00,
0x00,0x71,0xFC,0x00,0x00,0xFF,0xFC,0x00,
0x00,0x0F,0xF0,0x00,0x08,0x07,0xE0,0x00,
0x18,0x01,0xFF,0x00,0x18,0x03,0x9F,0x00,
0x1E,0x0F,0x3B,0x80,0x0F,0x1E,0x33,0x00,
0x07,0x2E,0x77,0x00,0x07,0x3E,0xFE,0x00,
0x07,0x3E,0xDC,0x00,0x06,0x77,0x9C,0x00,
0x06,0xEF,0xF8,0x00,0x07,0x4C,0x78,0x00,
0x07,0x0C,0x7C,0x00,0x07,0x0C,0x1F,0x00,
0x07,0x0C,0x0F,0xE0,0x07,0x0C,0x07,0xF8,
0x02,0x0C,0x01,0xFC,0x00,0x04,0x00,0x1C,
0x00,0x04,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"晶", 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x01,0xF8,0x00,
0x00,0x07,0xFC,0x00,0x00,0x3F,0x9C,0x00,
0x00,0x30,0x1C,0x00,0x00,0x18,0x1C,0x00,
0x00,0x1F,0xD8,0x00,0x00,0x1F,0xD8,0x00,
0x00,0x1E,0x18,0x00,0x00,0x18,0x18,0x00,
0x00,0x1F,0xF8,0x00,0x00,0x1F,0xF0,0x00,
0x00,0x08,0x7F,0x80,0x00,0x00,0x3F,0x80,
0x00,0x0C,0xF3,0xC0,0x00,0x3E,0xC3,0xC0,
0x01,0xC6,0xC3,0x80,0x01,0x86,0xFB,0x80,
0x01,0xFE,0xFF,0x80,0x01,0xF6,0xC3,0x80,
0x00,0xC6,0xC3,0x80,0x00,0xC6,0xFB,0x80,
0x00,0xFE,0xFF,0x80,0x00,0xFE,0x43,0x80,
0x00,0xE6,0x03,0x00,0x00,0x44,0x03,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"屏", 0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,
0x00,0x01,0xFE,0x00,0x00,0x07,0xFE,0x00,
0x00,0x0B,0xFE,0x00,0x00,0x1C,0x9C,0x00,
0x00,0x0C,0x38,0x00,0x00,0x1F,0xF8,0x00,
0x00,0x1F,0xFC,0x00,0x00,0x3F,0x08,0x00,
0x00,0x34,0x7E,0x00,0x00,0x37,0x8C,0x00,
0x00,0x67,0x18,0x00,0x00,0x63,0x7C,0x00,
0x00,0xC3,0xFC,0x00,0x00,0xDF,0xFC,0x00,
0x01,0x87,0xCC,0x00,0x01,0x87,0x0C,0xC0,
0x01,0x06,0xFF,0xE0,0x03,0x0F,0xFD,0xF0,
0x07,0x3F,0x0C,0x00,0x06,0xFE,0x0C,0x00,
0x0E,0xF6,0x0C,0x00,0x0C,0x06,0x0C,0x00,
0x18,0x0E,0x0C,0x00,0x30,0x0E,0x0C,0x00,
0x60,0x0C,0x0C,0x00,0x00,0x08,0x0C,0x00,
0x00,0x00,0x0C,0x00,0x00,0x00,0x0C,0x00,
0x00,0x00,0x04,0x00,0x00,0x00,0x00,0x00,
"极", 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x10,0x00,0x00,
0x00,0x38,0x00,0x00,0x00,0x1C,0x06,0x00,
0x00,0x1C,0x0F,0x00,0x00,0x1C,0x3D,0x80,
0x00,0x3E,0x79,0x80,0x00,0xFE,0xF1,0x80,
0x01,0xFD,0xF9,0x80,0x27,0xF8,0xF3,0x00,
0x1F,0xF9,0x73,0x00,0x1F,0xBA,0x67,0x00,
0x0F,0x3C,0xE3,0x80,0x06,0x38,0xC3,0x80,
0x00,0x39,0xC0,0xC0,0x00,0x71,0xC0,0xC0,
0x00,0xFF,0xF0,0xC0,0x01,0xF3,0xFD,0xC0,
0x03,0xE3,0x1F,0x80,0x03,0xE7,0x0F,0xC0,
0x01,0xE6,0x0F,0xE0,0x01,0x37,0x3F,0xF0,
0x00,0x34,0xF8,0xF8,0x00,0x34,0x20,0x3C,
0x00,0x10,0x00,0x1C,0x00,0x10,0x00,0x04,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"简", 0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x00,
0x00,0x00,0x0E,0x00,0x00,0x10,0x0E,0x00,
0x00,0x18,0x1E,0x00,0x00,0x3C,0xBF,0xC0,
0x00,0x79,0xBF,0xC0,0x00,0xFF,0x3F,0x80,
0x01,0xFF,0x16,0x00,0x01,0xF6,0x1C,0x00,
0x01,0xC0,0x7E,0x00,0x00,0x01,0xFF,0x00,
0x00,0x07,0xCF,0x00,0x00,0x1C,0x07,0x80,
0x00,0x18,0x07,0x80,0x00,0x3B,0xC3,0x80,
0x00,0xA3,0xE3,0x80,0x00,0xCC,0x63,0x80,
0x00,0xCC,0x63,0x80,0x00,0x8F,0xE3,0x80,
0x00,0x4F,0x63,0x80,0x00,0x4C,0x67,0x80,
0x00,0x8F,0xE7,0x80,0x00,0x8F,0xC7,0x80,
0x00,0x86,0xC7,0x80,0x01,0x80,0x47,0x80,
0x01,0x80,0x3F,0x80,0x00,0x80,0x1F,0x80,
0x00,0x00,0x07,0x80,0x00,0x00,0x03,0x00,
0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x00,
"方", 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x03,0x80,0x00,0x00,0x03,0xE0,0x00,
0x00,0x01,0xE0,0x00,0x00,0x00,0xF0,0x00,
0x00,0x01,0xF0,0x00,0x00,0x03,0x80,0x00,
0x00,0x1C,0x3F,0xE0,0x00,0x0F,0xE3,0xF0,
0x00,0xFF,0xCE,0x00,0x0F,0xF8,0xF0,0x00,
0x0F,0xE0,0xE0,0x00,0x0F,0x81,0xF8,0x00,
0x06,0x01,0xFE,0x00,0x00,0x03,0x87,0x00,
0x00,0x07,0x07,0x00,0x00,0x0E,0x07,0x00,
0x00,0x1C,0x0E,0x00,0x00,0x3A,0x0E,0x00,
0x00,0x72,0x1C,0x00,0x00,0xE2,0x38,0x00,
0x01,0x83,0x78,0x00,0x01,0x03,0xF0,0x00,
0x00,0x01,0xE0,0x00,0x00,0x01,0xC0,0x00,
0x00,0x01,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
"案", 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0xE0,0x00,0x00,0x00,0x60,0x00,
0x00,0x00,0x7C,0x00,0x00,0x00,0xCF,0x00,
0x00,0x09,0x8F,0x00,0x00,0x0F,0x9E,0x00,
0x00,0x1F,0xBC,0x00,0x00,0x3E,0xF8,0x00,
0x00,0x1D,0x7B,0xE0,0x00,0x19,0xFF,0xF0,
0x00,0x0F,0x70,0x00,0x01,0xFE,0x70,0x00,
0x0F,0xCF,0xE0,0x00,0x1F,0x0F,0xF8,0x00,
0x00,0x03,0xFE,0x00,0x00,0x0F,0x8E,0x00,
0x00,0xFF,0xE3,0x00,0x00,0x00,0xFF,0x00,
0x00,0x3F,0xE0,0x00,0x00,0x1C,0x60,0x00,
0x00,0x00,0x60,0x00,0x00,0x02,0x67,0x00,
0x00,0x3C,0x63,0x80,0x00,0x38,0xE1,0x80,
0x00,0x31,0xE0,0x80,0x00,0x20,0xC0,0x00,
0x00,0x00,0x40,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00
};二、需求全套中文，字数多必然需要更多存储空间，那么可以存放到FLASH中。
这里所讲的FLASH是与RA8889 / RA8876连接的，一般是用来存放UI所需的图资，也可以将字库存放于此，这样不需要增加成本，但可节省掉外接字库芯片的成本！

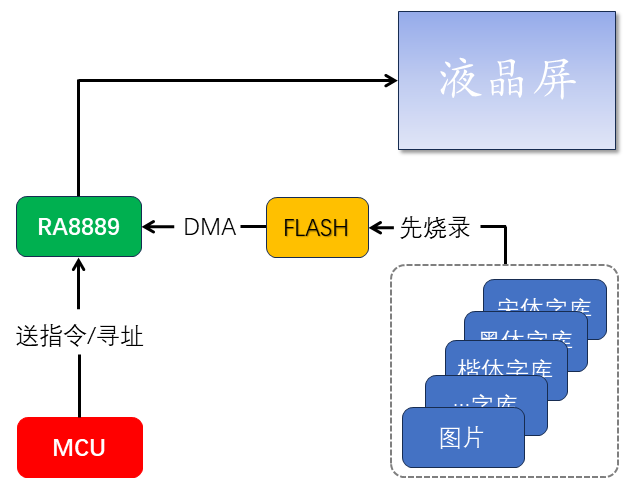

框架图：
自建字库不限套数，单套占用容量不大，比如24x24点是576KB。这里提供的算法是通过RA8889 / RA8876的DMA（Direct Memory Access）功能获取到字符数据，再通过BTE（Block Transfer Engine）功能将文字显示出来。经过优化，目前显示速度还算不错，参考下方展示视频：
调用代码范例：
**
// 演示自建字库调用
BTE_Solid_Fill(display_address, canvas_image_width, 0, 0, 0x01, LCD_width, LCD_height); // 缓存显示区域：填充底色0x01；display_address此处自定义为canvas_image_width*LCD_height*24/8
SPI_NOR_initial_DMA(0, Font_BUS, Font_CS, 1, 0); //FLASH初始化
User_Def_Font_Initial(); //显示自定义文字初始化
Font_Size_ChromaKey_ForeColor_BackColor(24, 1, color256_red, color256_white); //字体参数设定(最多256色)
Show_User_Def_String("自建汉字库：宋体１６ｘ１６演示", songti16, 16, 2, 50, 20); //显示字符串
Show_User_Def_String("自建汉字库：楷体１６ｘ１６演示", kaiti16, 16, 2, 50, 45); //显示字符串
Show_User_Def_String("自建汉字库：黑体１６ｘ１６演示", heiti16, 16, 2, 50, 70); //显示字符串
Font_Size_ChromaKey_ForeColor_BackColor(24, 1, color256_blue, color256_white); //字体参数设定(最多256色)
Show_User_Def_String("自建汉字库：宋体２４ｘ２４演示", songti24, 24, 2, 50, 100); //显示字符串
Show_User_Def_String("自建汉字库：楷体２４ｘ２４演示", kaiti24, 24, 2, 50, 125); //显示字符串
Show_User_Def_String("自建汉字库：黑体２４ｘ２４演示", heiti24, 24, 2, 50, 150); //显示字符串
Font_Size_ChromaKey_ForeColor_BackColor(32, 0, color256_yellow, color256_black); //字体参数设定(最多256色)
Show_User_Def_String("自建汉字库：宋体３２ｘ３２演示", songti32, 32, 0, 50, 200); //显示字符串
Show_User_Def_String("自建汉字库：楷体３２ｘ３２演示", kaiti32, 32, 0, 50, 240); //显示字符串
Show_User_Def_String("自建汉字库：黑体３２ｘ３２演示", heiti32, 32, 0, 50, 280); //显示字符串
// 图层S0色深恢复初始化状态
#if defined(MCU_8bit_ColorDepth_8bpp)
BTE_S0_Color_8bpp();
#endif
#if defined(MCU_8bit_ColorDepth_16bpp) || defined(MCU_16bit_ColorDepth_16bpp)
BTE_S0_Color_16bpp();
#endif
#if defined(MCU_8bit_ColorDepth_24bpp) || defined(MCU_16bit_ColorDepth_24bpp_Mode_1) || defined(MCU_16bit_ColorDepth_24bpp_Mode_2)
BTE_S0_Color_24bpp();
#endif
BTE_Memory_Copy_Chroma_key(display_address, canvas_image_width, 0, 0, 0, canvas_image_width, 0, 0, 0x01, LCD_width, LCD_height); // 缓存写好的文字搬移到显示层,剔除底色0x01
上方代码显示实例：

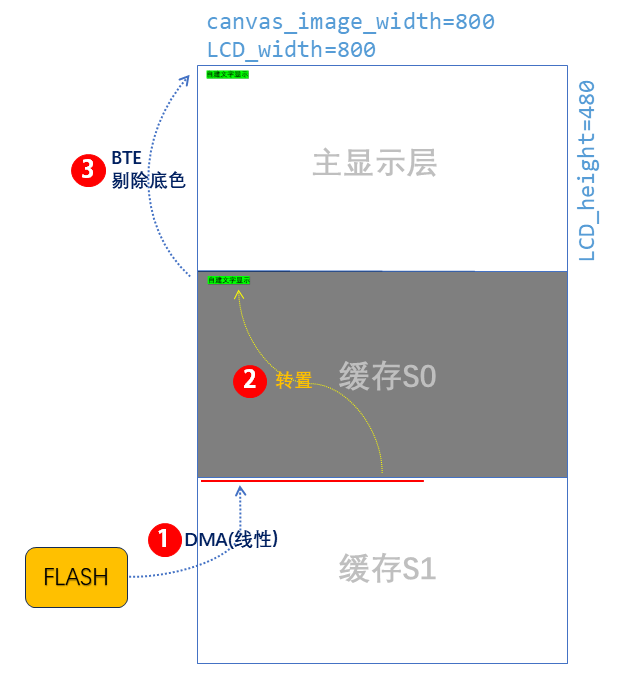

RA8889内建128Mb SDRAM作为显存，显存是自由定义的，这里我们设定为画布宽度（canvas_image_width）为800，测试的屏宽（LCD_width）为800，屏高（LCD_height）为480，将显存规划为主显示层、缓冲层S0、缓冲层S1…如下图示：
实际操作分为三步：
DMA（线性）：RA8889寻址获取字符数据并通过DMA方式写入缓存S1；
转置：MCU对缓存S1的数据转置后写入缓存S0，同时给文字加上前景、背景色或者透明色；
BTE剔除底色：RA8889内建BTE功能，可将底色剔除后再复制到主显示层，因此可以形成文字的透明效果。
附上算法程序供参考：
**
_/***************************************************************************************
* @file RA8889_Show_User_Def_FontLib_bitPic.c
* @author Weran
* @version 3.0
* @date 2023/08/16
* @brief 显示用户自定义字库或者单色位图，宽度为8的倍数，字形长宽相等，位图不限高度
* @copyright [www.lcdvision.com.cn](/)
****************************************************************************************/
#include "RA8889.h"
#include "RA8889_MCU_IF.h"
#include "RA8889_API.h"
#include "delay.h"
#include "RA8889_Show_User_Def_FontLib_bitPic.h"
#include "string.h"_
_/*****************************************
// 自建汉字库初始化
******************************************/
void User_Def_Font_Initial(void)
{
SPI_Clock_Period(2);
Select_SFI_Single_Mode_Dummy_8T_0Bh();
Enable_SFlash_SPI();_
_ #ifdef Over_128Mb // FLASH大小超过128Mb，切换为32位寻址
switch_24bits_to_32bits(Font_BUS, Font_CS);
Select_SFI_32bit_Address();
#else
Select_SFI_24bit_Address();
#endif_
_ switch (Font_CS) {
case 0:
Select_SFI_0();
break;
case 1:
Select_SFI_1();
break;
case 2:
Select_SFI_2();
break;
case 3:
Select_SFI_3();
break;
}_
_ Select_SFI_DMA_Mode();
SFI_DMA_Destination_Start_Address(cache_address);_
_ BTE_S0_Memory_Start_Address(cache_address); // 缓存图层
BTE_S0_Image_Width(main_image_width);
BTE_S0_Color_8bpp(); // 缓存色深固定8bit，不可变更_
_ BTE_Destination_Memory_Start_Address(display_address); // 显示到目的图层
BTE_Destination_Image_Width(main_image_width);_
_ // 目的窗口色深
#if defined(MCU_8bit_ColorDepth_8bpp)
BTE_Destination_Color_8bpp();
#endif
#if defined(MCU_8bit_ColorDepth_16bpp) || defined(MCU_16bit_ColorDepth_16bpp)
BTE_Destination_Color_16bpp();
#endif
#if defined(MCU_8bit_ColorDepth_24bpp) || defined(MCU_16bit_ColorDepth_24bpp_Mode_1) || defined(MCU_16bit_ColorDepth_24bpp_Mode_2)
BTE_Destination_Color_24bpp();
#endif_
_ BTE_Window_Size(8, 1); // 每次延展的区块大小：8x1
BTE_ROP_Code(15);
}_
_/*****************************************
// 字体显示效果设定函数
// Font_Size：字型大小
// ChromaKey：0-不透明；1-透明
// Foreground_color：前景色，最多256色
// Foreground_color：背景色，最多256色
******************************************/
void Font_Size_ChromaKey_ForeColor_BackColor(unsigned short Font_Size, unsigned char ChromaKey, unsigned char Foreground_color, unsigned char Background_color)
{
SFI_DMA_Transfer_Number(Font_Size * Font_Size / 8); // DMA单个汉字字节数_
_ Foreground_color_256(Foreground_color);_
_ if (ChromaKey == 1 && Foreground_color == Background_color)
Background_color_256(Background_color >> 1); // 当选择透明色时前景色与背景色不能一样，移1位区别
else
Background_color_256(Background_color);_
_ if (ChromaKey == 0)
BTE_Operation_Code(14); // 背景非透明
else if (ChromaKey == 1)
BTE_Operation_Code(15); // 背景透明
}_
_/*****************************************************
// 显示字符串函数
// str：字符串
// Font_Lib_Offset：汉字库在FLASH中地址偏移，宏定义预设
// Font_Size：字型大小
// Font_Gap：字符间距
// x & y：字符串显示坐标
******************************************************/
void Show_User_Def_String(char *str, unsigned int Font_Lib_Offset, unsigned short Font_Size, unsigned char Font_Gap, unsigned short x, unsigned short y)
{
unsigned char i, len;
unsigned short hanziIndex;
const char hanziCode[200];_
_ strcpy((char *)hanziCode, str);
len = strlen(&*hanziCode) / 2;_
_ for (i = 0; i < len; i++) {
hanziIndex = 94 * (hanziCode[2 * i] - 0xA1) + (hanziCode[2 * i + 1] - 0xA1); // 汉字区码、位码均起始0xA1
Show_User_Def_Font(hanziIndex, Font_Lib_Offset, Font_Size, x + Font_Size * i + Font_Gap * (i - 1), y);
}
}_
_/**********************************************************
// 显示自定义汉字函数
// 注意：字宽必须为8的倍数
// hanziIndex：汉字在国标码中的位置
// Font_Lib_Offset：汉字库在FLASH中地址偏移，宏定义预设
// Font_Size：字型大小
// x & y：字符显示坐标
**********************************************************/
void Show_User_Def_Font(unsigned short hanziIndex, unsigned int Font_Lib_Offset, unsigned short Font_Size, unsigned short x, unsigned short y)
{
unsigned char i, j;
unsigned short Width_Byte = Font_Size / 8; // 宽度按字节数
unsigned short Font_Byte = 0; // 单个字体字节计数_
_ Memory_Linear_Mode(); // 线性模式
SFI_DMA_Source_Start_Address(Font_Size * Font_Size / 8 * hanziIndex + Font_Lib_Offset);
Start_SFI_DMA();
Check_Busy_SFI_DMA();
Memory_XY_Mode(); // 区块模式_
_ /*在8bpp模式下先进行转置并延展，再上色*/
for (i = 0; i < Font_Size; i++) // 字高，每次处理1bit=1点
{
for (j = 0; j < Width_Byte; j++) // 字宽
{
BTE_S0_Window_Start_XY(Font_Byte++, 0); // 每次处理1byte=8点
BTE_Destination_Window_Start_XY(x + 8 * j, y + i); // 转置+延展
BTE_Enable();
Check_BTE_Busy();
}
}
}_
_/*****************************************
// 单色位图显示初始化
// Pic_Width：图片宽度
// Pic_Height：图片高度
// ChromaKey：0-不透明；1-透明
// Foreground_color：前景色，最多256色
// Foreground_color：背景色，最多256色
******************************************/
void Bit_Picture_Initial(unsigned short Pic_Width, unsigned short Pic_Height, unsigned char ChromaKey, unsigned char Foreground_color, unsigned char Background_color)
{_
_ SPI_Clock_Period(2);
Select_SFI_Single_Mode_Dummy_8T_0Bh();
Enable_SFlash_SPI();_
_ #ifdef Over_128Mb // FLASH大小超过128Mb，切换为32位寻址
switch_24bits_to_32bits(Font_BUS, Font_CS);
Select_SFI_32bit_Address();
#else
Select_SFI_24bit_Address();
#endif_
_ switch (Font_CS) {
case 0:
Select_SFI_0();
break;
case 1:
Select_SFI_1();
break;
case 2:
Select_SFI_2();
break;
case 3:
Select_SFI_3();
break;
}_
_ Select_SFI_DMA_Mode();
SFI_DMA_Destination_Start_Address(cache_address);_
_ BTE_S0_Memory_Start_Address(cache_address); // 缓存图层
BTE_S0_Image_Width(main_image_width);
BTE_S0_Color_8bpp(); // 缓存色深固定8bit，不可变更_
_ BTE_Destination_Memory_Start_Address(display_address); // 显示到目的图层
BTE_Destination_Image_Width(main_image_width);_
_ // 目的窗口色深
#if defined(MCU_8bit_ColorDepth_8bpp)
BTE_Destination_Color_8bpp();
#endif
#if defined(MCU_8bit_ColorDepth_16bpp) || defined(MCU_16bit_ColorDepth_16bpp)
BTE_Destination_Color_16bpp();
#endif
#if defined(MCU_8bit_ColorDepth_24bpp) || defined(MCU_16bit_ColorDepth_24bpp_Mode_1) || defined(MCU_16bit_ColorDepth_24bpp_Mode_2)
BTE_Destination_Color_24bpp();
#endif_
_ BTE_Window_Size(8, 1); // 每次延展的区块大小：8x1
SFI_DMA_Transfer_Number(Pic_Width * Pic_Height / 8); // DMA单张图片字节字节数_
_ Foreground_color_256(Foreground_color);_
_ if (ChromaKey == 1 && Foreground_color == Background_color)
Background_color_256(Background_color >> 1); // 当选择透明色时前景色与背景色不能一样，移1位区别
else
Background_color_256(Background_color);_
_ BTE_ROP_Code(15);
if (ChromaKey == 0)
BTE_Operation_Code(14); // 背景非透明
else if (ChromaKey == 1)
BTE_Operation_Code(15); // 背景透明
}_
_/**********************************************************
// 显示单色位图函数
// 注意：图片宽度必须为8的倍数
// Pic_Offset：图片在FLASH中地址偏移
// Pic_Width：图片宽度（必须为8的倍数）
// Pic_Height：图片高度
// x & y：图片显示坐标
**********************************************************/
void Show_Bit_Picture(unsigned int Pic_Offset, unsigned short Pic_Width, unsigned short Pic_Height, unsigned short x, unsigned short y)
{
unsigned char i, j;
unsigned short Pic_Width_Byte = Pic_Width / 8; // 宽度按字节数
unsigned short Pic_Byte = 0; // 单张图片字节计数_
_ Memory_Linear_Mode(); // 线性模式
SFI_DMA_Source_Start_Address(Pic_Offset);
Start_SFI_DMA();
Check_Busy_SFI_DMA();
Memory_XY_Mode(); // 区块模式_
_ /*在8bpp模式下先进行转置并延展，再上色*/
for (i = 0; i < Pic_Height; i++) // 图片高，每次处理1bit=1点
{
for (j = 0; j < Pic_Width_Byte; j++) // 图片宽度，按字节数
{
BTE_S0_Window_Start_XY(Pic_Byte++, 0); // 每次处理1byte=8点
BTE_Destination_Window_Start_XY(x + 8 * j, y + i); // 转置+延展
BTE_Enable();
Check_BTE_Busy();
}
}
}_函数声明及宏定义：
**
/****************************************************************************************
* @file RA8889_Show_User_Def_FontLib_bitPic.h
* @author Weran
* @version 3.0
* @date 2023/08/16
* @brief 显示用户自定义字库或者单色位图，宽度为8的倍数，字形长宽相等，位图不限高度
* @copyright [www.lcdvision.com.cn](/)
*****************************************************************************************/
#ifndef __RA8889_SHOW_USER_DEF_FONTLIB_BITPIC_H
#define __RA8889_SHOW_USER_DEF_FONTLIB_BITPIC_H
#include "UserDef.h"
#define display_address canvas_image_width*LCD_height*24/8 //延展后目标显示地址
#define cache_address canvas_image_width*LCD_height*24/8*2 //缓存地址 (8bpp)，宽x高满足单字容量即可
#define Font_BUS 1 //自建字库总线地址
#define Font_CS 2 //自建字库片选地址
//#define Over_128Mb //FLASH容量超过128Mb
/*字库可以多套合并，套数不限，但字宽必须为8的倍数，bin档可使用PackagingTool等软件合并*/
#define heiti16 0x00000000 //黑体16x16起始地址
#define heiti24 0x0003FE40 //黑体24x24起始地址
#define heiti32 0x000CFA50 //黑体32x32起始地址
#define songti16 0x001CF350 //宋体16x16起始地址
#define songti24 0x0020F190 //宋体24x24起始地址
#define songti32 0x0029EDA0 //宋体32x32起始地址
#define kaiti16 0x0039E6A0 //楷体16x16起始地址
#define kaiti24 0x003DE4E0 //楷体24x24起始地址
#define kaiti32 0x0046E0F0 //楷体32x32起始地址
#define pic 0x0056D9F0 //范例图片起始地址
#define bit_pic 0x00BE35F0 //范例单色位图起始地址，数字0~9
void User_Def_Font_Initial(void);
void Font_Size_ChromaKey_ForeColor_BackColor(unsigned short Font_Size,unsigned char ChromaKey,unsigned char Foreground_color,unsigned char Background_color);
void Show_User_Def_String(char *str,unsigned int Font_Lib_Offset,unsigned short Font_Size,unsigned char Font_Gap,unsigned short x,unsigned short y);
void Show_User_Def_Font(unsigned short hanziIndex, unsigned int Font_Lib_Offset, unsigned short Font_Size, unsigned short x, unsigned short y);
void Bit_Picture_Initial(unsigned short Pic_Width, unsigned short Pic_Height, unsigned char ChromaKey,unsigned char Foreground_color,unsigned char Background_color);
void Show_Bit_Picture(unsigned int Pic_Offset, unsigned short Pic_Width, unsigned short Pic_Height, unsigned short x, unsigned short y);
#endif /*__RA8889_SHOW_USER_DEF_FONTLIB_BITPIC_H*/
看完了有没有收获？满满干货全部奉献，期待您的点赞、分享、留言！！！
第七讲 THE END
分享到：
